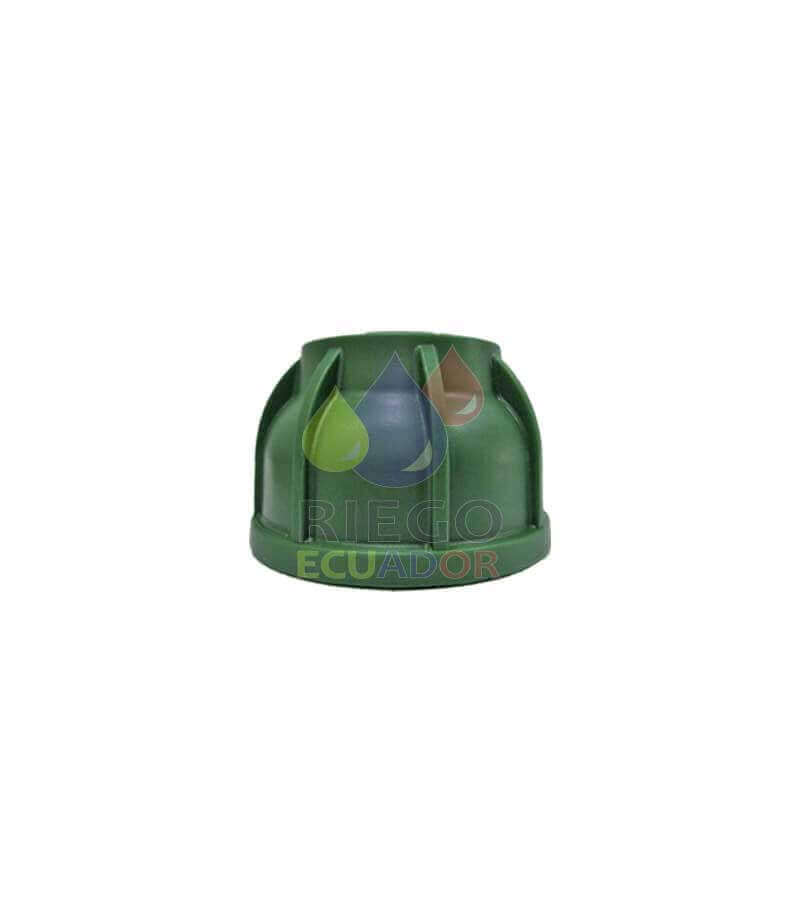

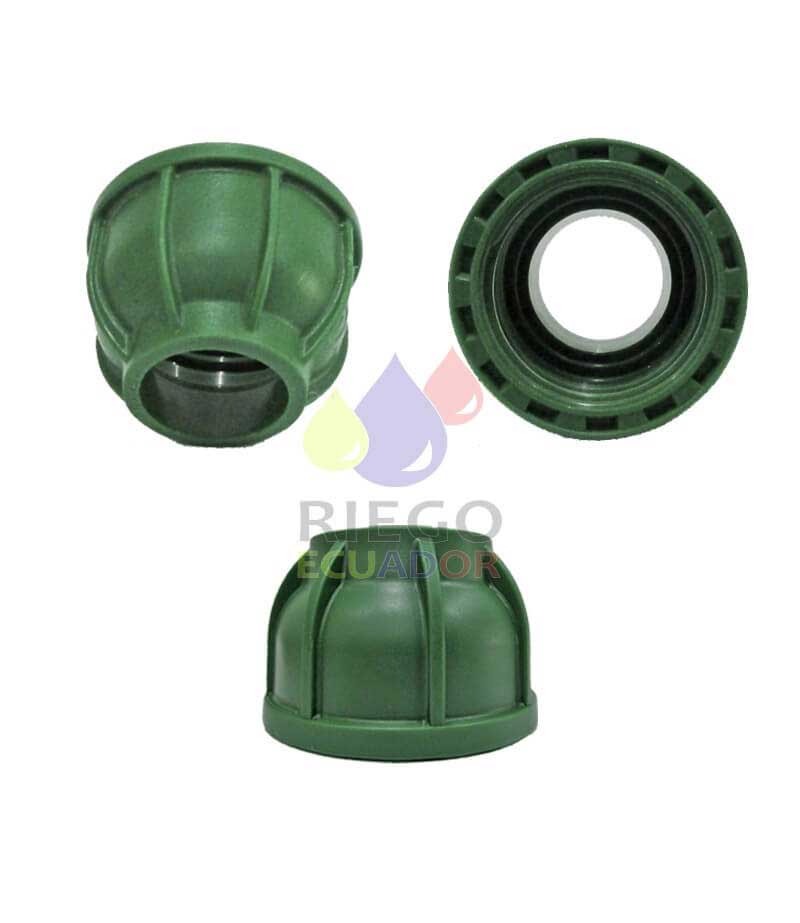

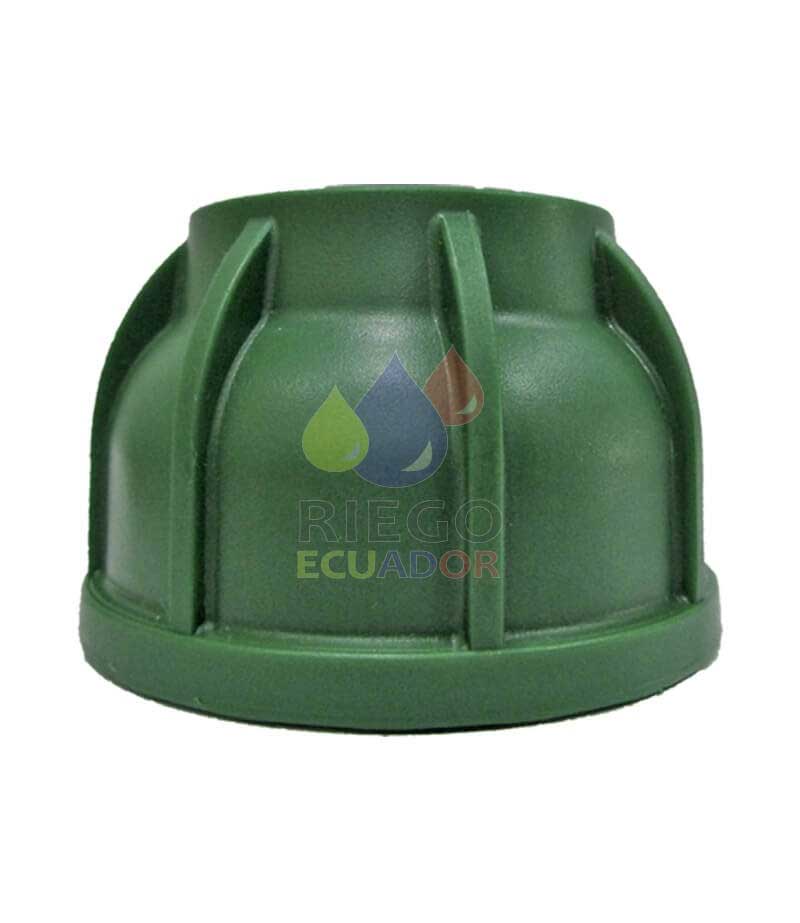

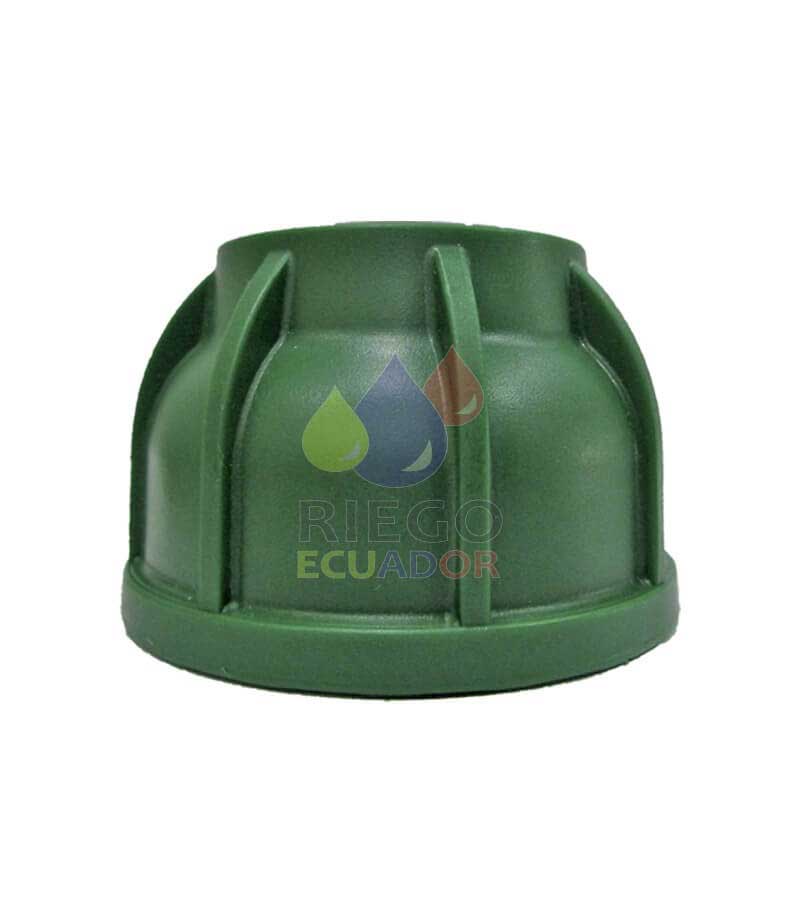

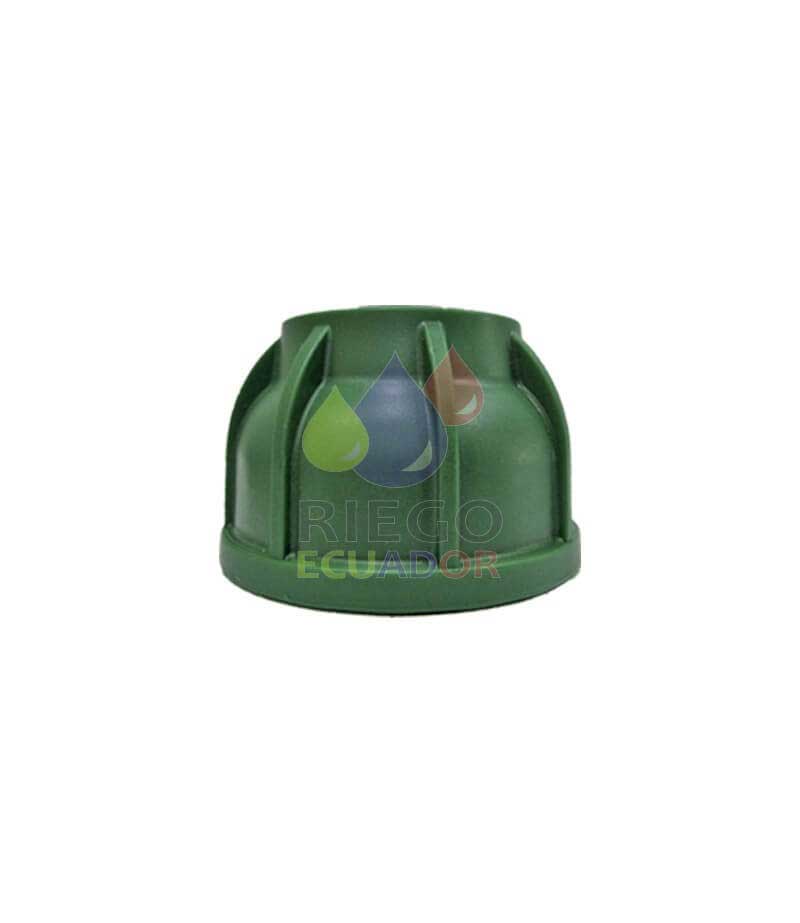

Tapa Verde (Repuesto) 16 mm

Tapa Verde (Comp. Italia)

Disponible en:

16mm, 20mm, 25mm, 32mm, 40mm, 50mm

irritec
Fittings and valves high pressure I Connecto™ Plus
COMPRESSION FITTINGS
"CONNECTO™ PLUS"
The Connecto - Plus compression fittings line has
been designed for the conveyance of fluids at
high pressures for applications in the thermohydraulic
sector. This product line answers to the
most severe international standards in terms of mechanical properties.
Materials
Parts
Body (A)
Blocking bush (D)
Nut (B)
Clinching ring (C)
E
Gasket
El
Reinforcing ring
Reference Standards
Material
Heterophasic black polypropylene (PP-B) of exceptional mechanical
properties even at high temperature.
Polypropylene
Polypropylene with dye master of high stability to UV rays
and solidity to heat
Polyacetal resin (POM) of high mechanical resistance
and hardness.
Special elastomeric acrylonitrile rubber (NBR) for alimentary use
for diam. 16 - 20 - 25 - 32 - 75 - 90 and 110
Elastomeric acrylonitrile lip seal (NBR) for alimentary use for
diam. 40 - 50 and 63
Stainless steel AISI 430
for female threads from 1" ¼ to 4"
Colour
black
black
bluee
(RAL5005)
white
black
Group 0801
B
e
D
E -e::::>
E1
A
B
• Operating pressures: UNI 9561:2006; DIN 8076:2007; ISO 14236:2000; GW 335-83:2011; SANS 14236:2003; AS/NZS 4129:2008.
• Polyethylene (PE) pipes : UNI 7990:2004; UNI EN 12201-2:2004; DIN 8074:1999
• Threads: ISO 7-1:2007; UNI EN 10226-1:2006; UNI EN ISO 228-1:2003; ANSI ASME B1.20.1:1983
• Flanges: UNI EN 1092-1:2007; ISO 7005-1:2011
Working Pressures
Connecto- Plus allows the maximum working pressure ( PN~PFA*) of 16 bar (UNI 9561) for diameters from 16 to 63 and PN 10 for diameters
from 75 to 110, at the temperature of 20 ºC. Maximum allowable working pressures related to the duration of pressure and temperature:
0
16e83
75,110
*Standards EN 805
PFA*
16
10
PMA*
20
12,5
PEA*
24
10
-==Te=m=p=er=at;u.r:e. ;(;º;C;;) ;;;. from -10 to 25 from +26 to +35 from +36 to +45 16 12,5 10
10 8 6
