Gotero ajustable con estaca 0 - 70 L/H

GOTERO CON ESTACA 0-70 L/H ROJO AJUSTABLE Adicionar a Favoritos
RIEGO ECUADOR
Codigo: 00002849

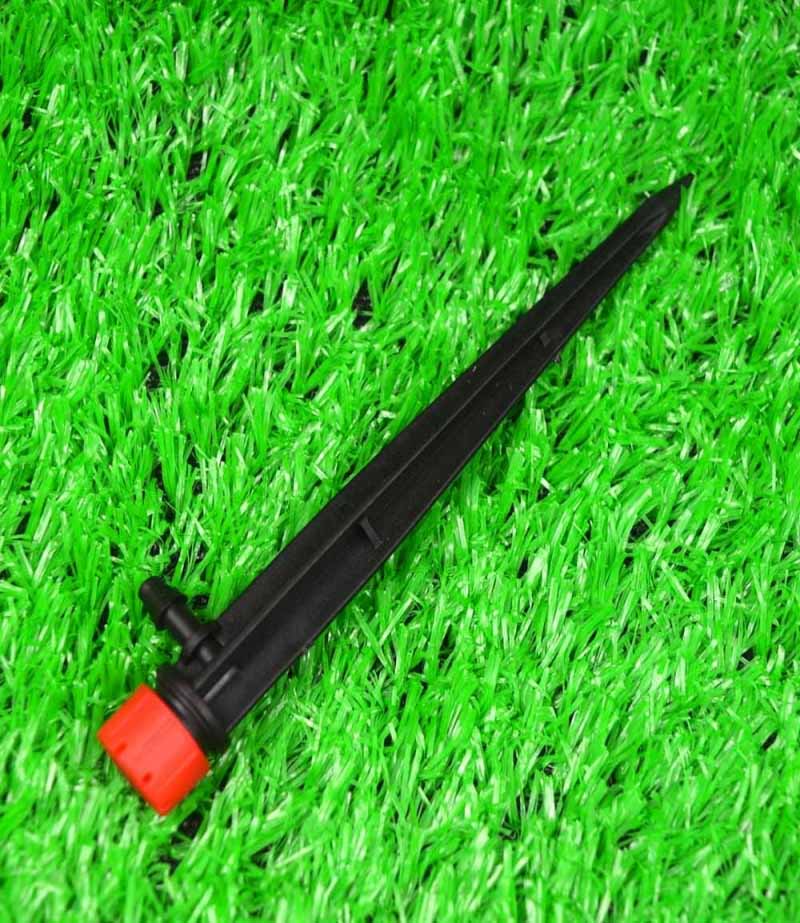

Gotero ajustable con estaca de 0 a 70 litros / hora

Precio anterior $ 0.30 Precio actual $ 0.26 + 0% IVA

Variantes de este producto:

Gotero ajustable con estaca

Tiene conector desprendible para manguera 

Caudal regulable: 0 a 40 litros / hora
Presión: 1 a 2 bar (15 a 30 psi)
Permite desarmar para limpieza

Nuevo Comentario

Entra para poder comentar

Tabla técnica gotero ajustable

Descargar

Table goteros ajustables

Descargar

Ficha gotero ajustable

Descargar

Certificaciones Irritec

Descargar

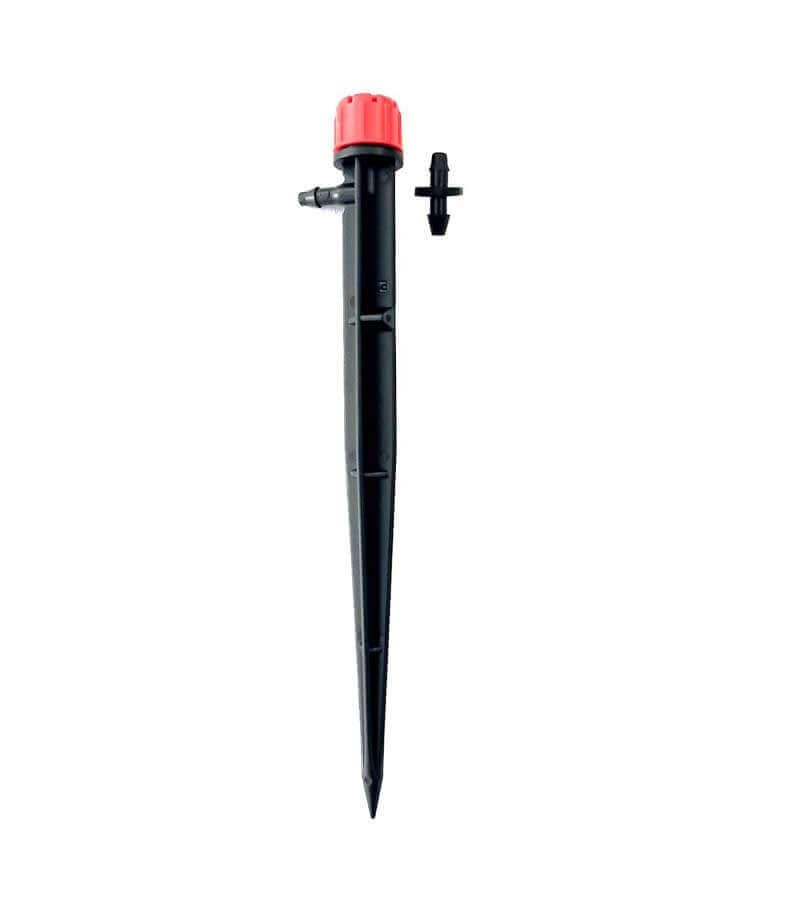

Gotero ajustable con estaca

Tiene conector desprendible para manguera 

Caudal regulable: 0 a 40 litros / hora
Presión: 1 a 2 bar (15 a 30 psi)
Permite desarmar para limpieza


TDS10010EN – rev.00 del 10/05/2019
Sheet n°: TDS10010EN
Revision n°: 01
dated: 28/01/2020
Approved by: UTECHZ
Page 2/2
Benefits, operation and materials
Both versions are inspectable emitters, which can be opened by unscrewing the nut for internal cleaning of the
components.
Inside there is the labyrinth top cap or the compensating membrane, depending on the version.
Technical design
Technical data
Table 1.
Item number Version Type Qnom (lph) Flow-rate
@1bar CV % Nut color Body
color Component
IMNDC2000V040 NDC Pressure
compensating 4 4,1 6 green black membrane
IMNDC2000R080 NDC
Pressure
compensating 8 8,3 6 red black membrane
IMNDC2000Y160 NDC Pressure
compensating 16 16,3 6 yellow black membrane
IMNDN2000A020 NDN turbulent 2 1,8 6 light blue black labyrith cap
IMNDN2000V040 NDN turbulent 4 4,1 6 black black labyrith cap
IMNDN2000R080 NDN turbulent 8 8,3 6 grey black labyrith cap
IMNDN2000Y160 NDN turbulent 16 16,3 6 yellow black labyrith cap
Reference standards
Code Title Edition Certificate
- 
Use and assembly instructions
Insert in the Ø16-20 or 25 mm PE pipe, after you have punched Ø2,5-3,0 mm hole.
After unscrewing the dripper for cleaning, check the correct position of the internal element for assembly. The nut must be
tightened sufficiently in order to guarantee the correct operation and avoid possible dripping.
Packaging
Table 2.
Version Pack Box Type
ALL 500 4000 B
Notes and annexes


TDS10010ES – rev.00 del 10/05/2019
Hoja n°: TDS10010ES
Revisión n°: 01
fecha: 28/01/2020
Aprobado por: UTECHZ
Página 2/2
Prestaciones, funcionamiento y materiales
Ambas versiones son emisores inspeccionables, que se pueden abrir desenroscando la tuerca para la limpieza interna del
componentes
En el interior se encuentra la tapa superior de laberinto o la membrana de compensación, según la versión.
Diseño técnico
Datos técnicos
Tabla 1.
Número de artículo Versión Tipo Qnom (lph) Caudal
@1bar CV % Color nuez Cuerpo
componente de color
IMNDC2000V040 NDC Presión
compensando 4 4,1 6 verde negro membrana
IMNDC2000R080 NDC
Presión
compensando 8 8,3 6 rojo negro membrana
IMNDC2000Y160 NDC Presión
compensando 16 16,3 6 amarillo negro membrana
IMNDN2000A020 NDN turbulento 2 1,8 6 tapa laberinto negro azul claro
IMNDN2000V040 NDN turbulento 4 4,1 6 negro tapa laberinto negro
IMNDN2000R080 NDN turbulento 8 8,3 6 tapa gris negro laberinto
IMNDN2000Y160 NDN turbulento 16 16,3 6 tapa amarilla negra laberinto
Estándares de referencia
Código Título Edición Certificado
- 
Instrucciones de uso y montaje
Inserte en el tubo de PE de Ø16-20 o
